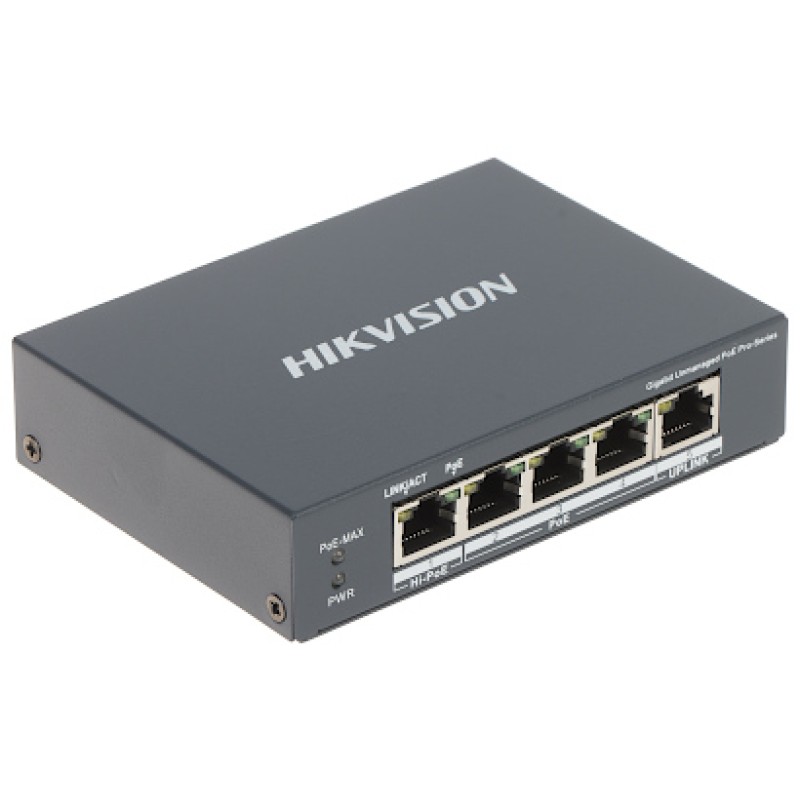

3 x gigabit PoE ports, 1 x gigabit Hi-PoE port and 1 x gigabit RJ45 port. IEEE 802.3at/af/bt standard for Hi-PoE port (Max. 60 W PoE output). IEEE 802.3at/af standard for PoE ports (Max. 30 W PoE output). IEEE 802.3, IEEE 802.3u, IEEE 802.3x, and IEEE 802.3ab standard. 6 KV surge protection for PoE ports. Up to 300 m long-range transmission. PoE watchdog to auto detect and restart the cameras that do not respond. Port isolation to improve network security. Gigabit network access design. Wire-speed forwarding. Store-and-forward switching. Solid high-strength metal shell. Reliable fan-free design.
Network Parameters Port Number: 3 x Gigabit PoE ports, 1 x Gigabit Hi-PoE port, and 1 x Gigabit RJ45 port Port Type: RJ45 port, full duplex, MDI/MDI-X adaptive Working Mode: Standard mode (default), Extend mode, Isolation mode, PoE watchdog mode Standard: IEEE 802.3, IEEE 802.3u, IEEE 802.3x, and IEEE 802.3ab Forwarding Mode: Store-and-forward switching Ports For Long-Distance Transmission: Ports 3 and 4 MAC Address Table: 2K Internal Cache: 1 Mbits Switching Capacity: 10 Gbps Packet Forwarding Rate: 7.44 Mpps PoE Power Supply
PoE Standard: Port 1: IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt / Ports 2 to 4: IEEE 802.3af, IEEE 802.3at PoE Power Pin: 8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-) PoE Port: Ports 1 to 4 Max. Port Power: Port 1: 60 W / Ports 2 to 4: 30 W PoE Power Budget: 60 W Dialing Function
Long Range: Ports 3 and 4: up to 300 m, and the speed rate of the port is 10 Mbps. Port Isolation: Ports 1 to 4: port isolation mode to improve network security. PoE Watchdog: Ports 1 to 4: auto detect and restart the cameras that do not respond. General
Shell: Metal material, fan-free design Net Weight: 0.27 kg Dimension (W x H x D): 121 mm x 88.1 mm x 27.6 mm Operating Temperature: -10°C to 40°C Storage Temperature: -40°C to 85°C Operating Humidity: 5% to 95% (no condensation) Storage Humidity: 5% to 95% (no condensation) Power Supply: 48 VDC, 1.35 A Power Consumption In Idle: < 5W Max. Power Consumption: 65 W Approval
EMC: FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 55024: 2010 +A1: 2015); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016) Safety: UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013) Chemistry: CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
