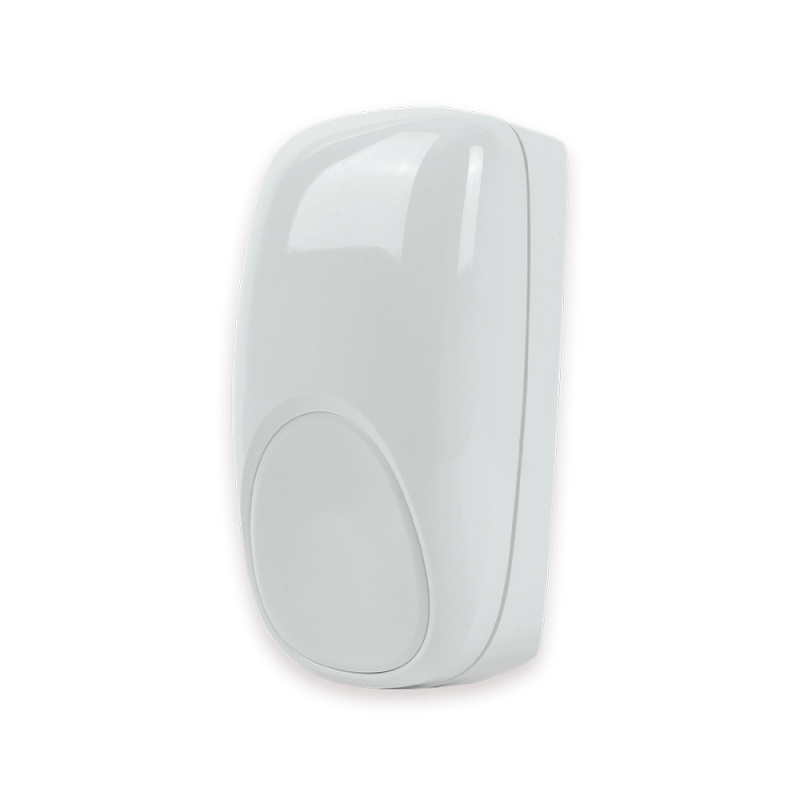

DT8016MF24 DUAL TEC MOTION SENSOR
  • Brand: Honeywell
  • Model: 0000109000
  • SKU: DT8016MF24
  • MPN: DT8016MF24
Designed for mid to high-end commercial environments where a Grade 3 system may be required, the new Honeywell DT8016 motion sensor delivers reliable protection with improved false alarm immunity through patented solutions.

It includes DualCore signal processing which is ideal for areas that are difficult to protect with standard products and integrates a total of five patented solutions to improve reliability and installation.

In addition to this, the installer will benefit from the design of the sensor which allows easy access to the connectors with its quick plug-in feature. Furthermore, this motion sensor offers integrated EOL resistors and an enhanced walk test feature saving time on installation.

Finally, optimum performance is achieved using K-Band microwave technology and Uniform Sensitivity Optics.
Detection type: PIR (mirror) + Microwave.
Range 16m x 22m.
EOL resistors: Alarm & tamper
Detection zones: 36 long range, 10 intermediate, 12 lower, 2 look down.
Microwave frequency: K-Band : 24.200 GHz.
Mounting height: 2.3m optimal.
Power requirements: 9Vdc to 15Vdc.
Consumption: 24mA typical, 30mA maximum, 12 Vdc; AC ripple: 3 V peak-to-peak at nominal 12 Vdc.
Tamper: Cover & wall.
Operating temperature -10°C to 55°C.
Temperature compensation: Advanced dual slope.
Relative humidity: 5 % to 95 %, non-condensing.
Dimensions: 11,86 x 6,73 x 4,64cm.
Weight: 137gr.
Approval: EN50131-2-4 Grade 2 Class II, NF&A2P two shields.
